Honing machine

Sunnen is the leader in precision bore sizing systems worldwide.

When you choose the “Sunnen Solution”, you get the honing machines together with best cutting abrasives, high performance honing oils, coolants, toolings and precision bore gages.

With nearly 100 years of experience, Sunnen provides precision bore honing solutions for an incredibly wide range of industries and applications.

Manual or fully automated, horizontal or vertical, single or multi-spindle, Sunnen develops the optimal, cost-effective solution based on the customer's needs.

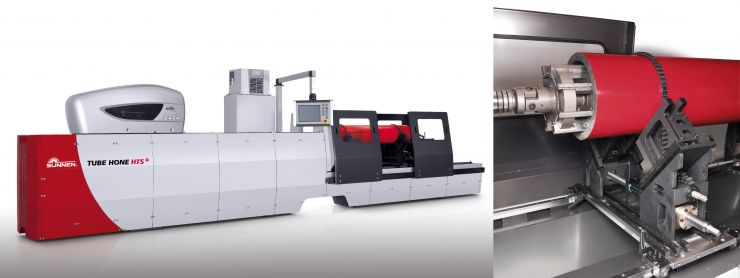

One example of our know-how in honing long bores is the Horizontal Series, which is the result of more than 30 years’ experience in tube hone design and manufacturing.

Many systems are customized and designed for performance and accuracy to optimally process a wide range of diameters.

Basic technical specifications:

• Diameter range 4 – 1.500 mm
• Power spindle motor 1.5 - 15 kW
• Spindle speed 30 - 400 min-1
• Power stroke motor 3.2 – 14 kW
• Stroker speed 0.1 - 40 m/min
• Stroke lengths 1'000 bis zu 15'000 mm

Optional features:

In-process gaging, part rotation device, taper honing, automation

For more information about Sunnen’s wide product range, visit sunnen.eu.
